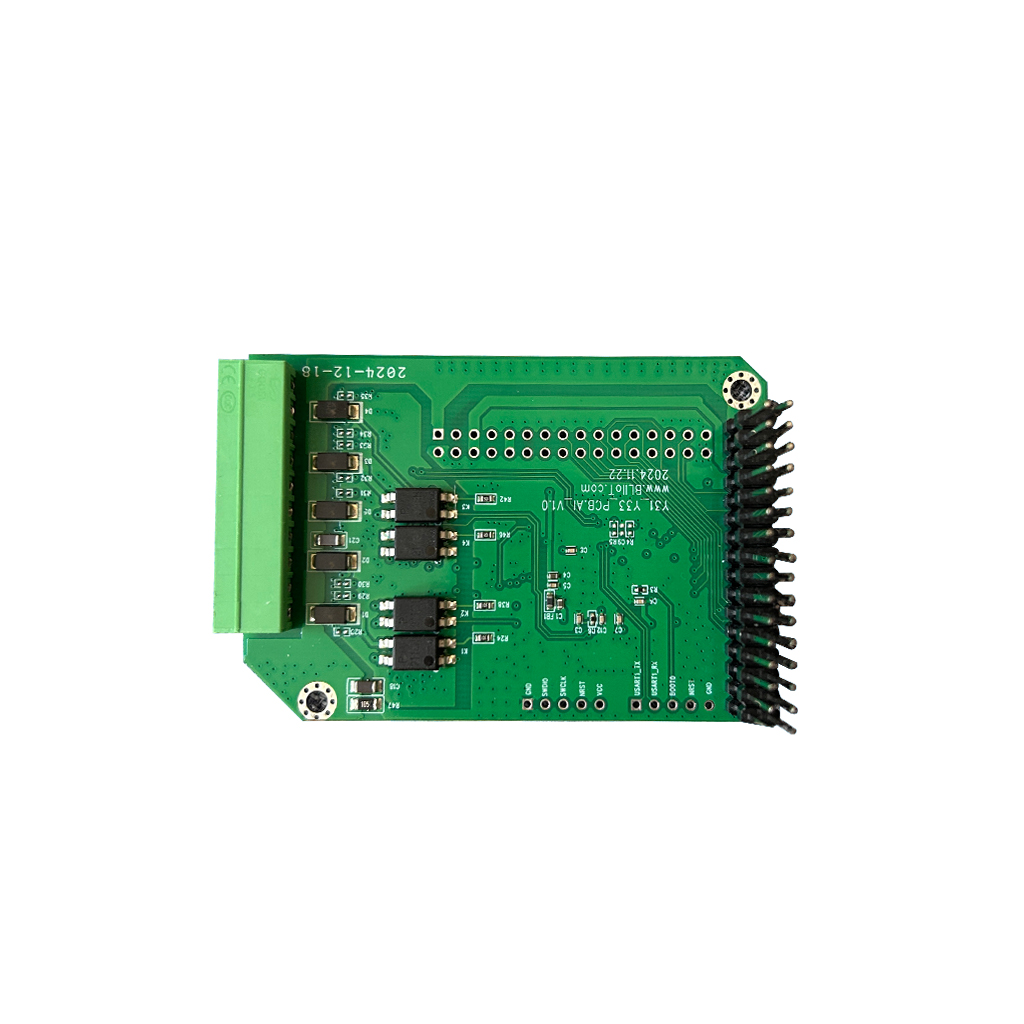

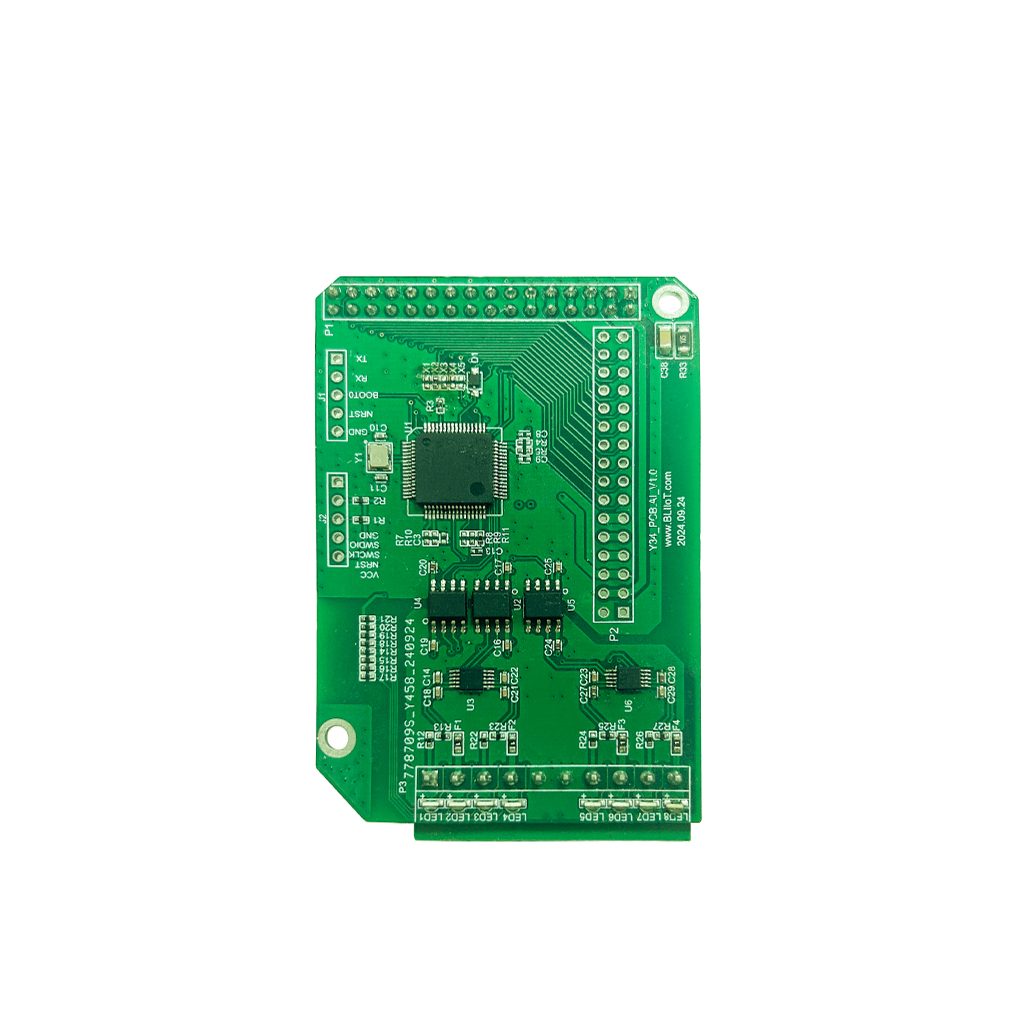

The thermocouple input module is one of the Y series I/O modules for IOy series and ARMxy series products.This module features 4 input channels: TC1, TC2, TC3, and TC4, supporting the acquisition of J, K, E, T, S, R, B, and N-type thermocouple signals.The input signals for each channel are electrically isolated, converted into digital signals, and transmitted with 16-bit resolution.
Key specifications
Power Supply
Operating Voltage
Internal Voltage
Power Supply
Power Consumption
0.192W
Thermocouple Input
Channels
4CH
Thermocouple Input
Sensor Type
J/K/E/T/S/R/B/N type thermocouple
Thermocouple Input
Resolution
16Bit
Thermocouple Input
Accuracy
±0.5% @25℃
Thermocouple Input
Conversion Rate
400 ms
Thermocouple Input
Measurement range:
J
-210~1200℃
Thermocouple Input
Measurement range:
K
-200~1372℃
Thermocouple Input
Measurement range:
E
-200~1000℃
Thermocouple Input
Measurement range:
T
-200~400℃
Thermocouple Input
Measurement range:
S
-50~1768℃
Thermocouple Input
Measurement range:
R
-50~1768℃
Thermocouple Input
Measurement range:
B
250~1820℃
Thermocouple Input
Measurement range:
N
-200~1300℃
Certifications
EMC
IEC 61000-4-2 (ESD) Level 3
Certifications
EMC
IEC 61000-4-4 (EFT) Level 3
Certifications
EMC
IEC 61000-4-5 (Surge)Level 3
Supply information
Manufacturer
BLIIoT — Beilai Technology Co., Ltd.
Model code
Y58
Full name
4CH High Resolution Thermocouple Input Module
Category
Expansion Y boards
Supplied in Korea by
ACUSYS Co., Ltd. · Official BLIIoT distributor in Korea
