8DI + 8AI + 8DO Industrial Automation Control Module

The M160E Industrial Ethernet I/O Module is a versatile data acquisition and control device designed for industrial automation applications. Built with a 32-bit high-performance MCU, it features dual 10/100M Ethernet ports for reliable network connectivity and supports multiple protocols including Modbus TCP, Modbus RTU over TCP and MQTT.

Power

Input voltage	Models without AO: 9~36VDC Models with AO: 24~36VDC
Power consumption	Typical standby power consumption: ≤ 2W
Power Output	1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX)

Ethernet

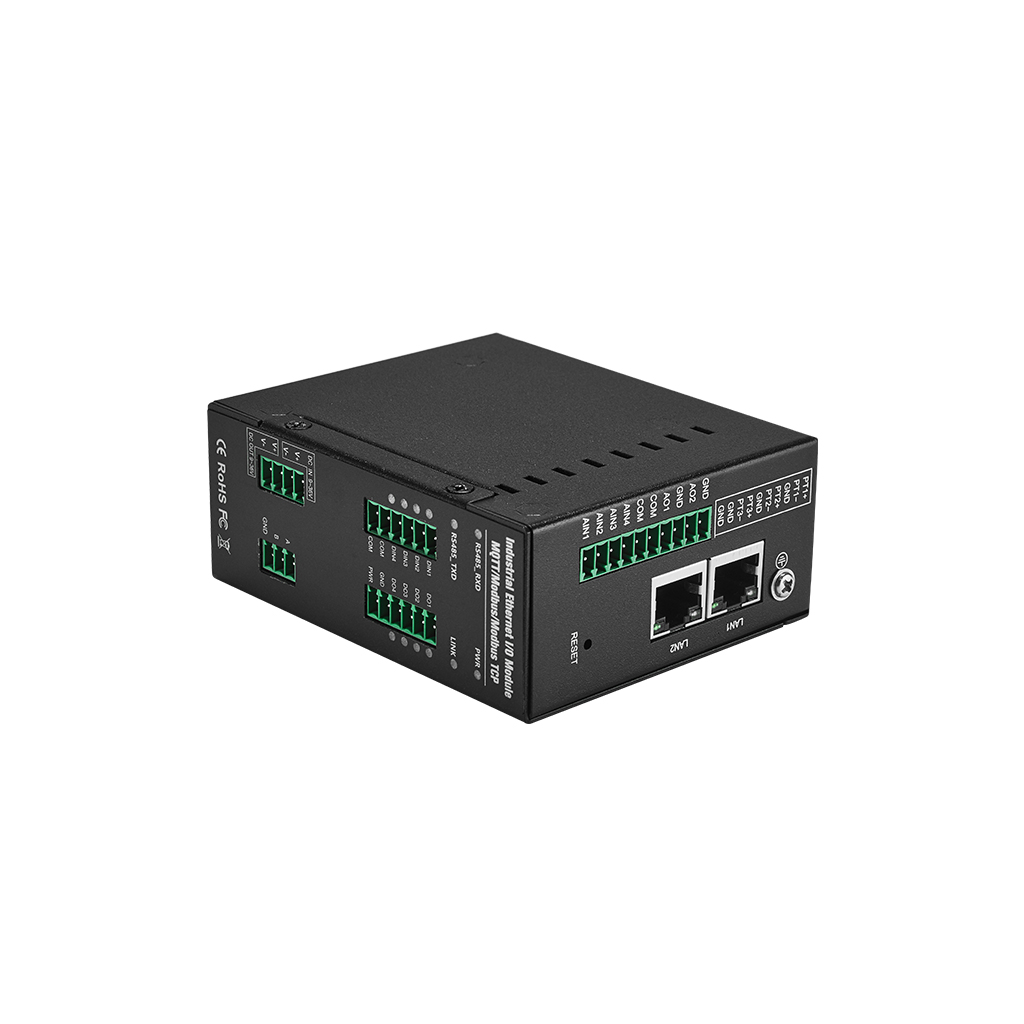

Specification	2 x RJ45, 10M/100Mbps
Protocol	Modbus RTU, Modbus TCP, MQTT

Serial port

Quantity	1 x RS485
Baud Rate	2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Protocol	Modbus RTU(slave), Modbus RTU(master)

Digital input

Quantity	8 channels
Type	Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact

Digital output

Quantity	8 channels
Type	SINK

Analog input

Quantity	8 channels
Method	Differential input
Type	4-20mA, 0-20mA, 0-5V, 0-10V

Software

Protocols	IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT
Protocol conversion	Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT

Environment

Working	-20～70°C, 5～95%RH
Storage	-40～85°C, 5～95%RH

Others

Case	Metal
Dimension	82mm×40mm×100mm
Protection grade	IP30
Net Weight	350g

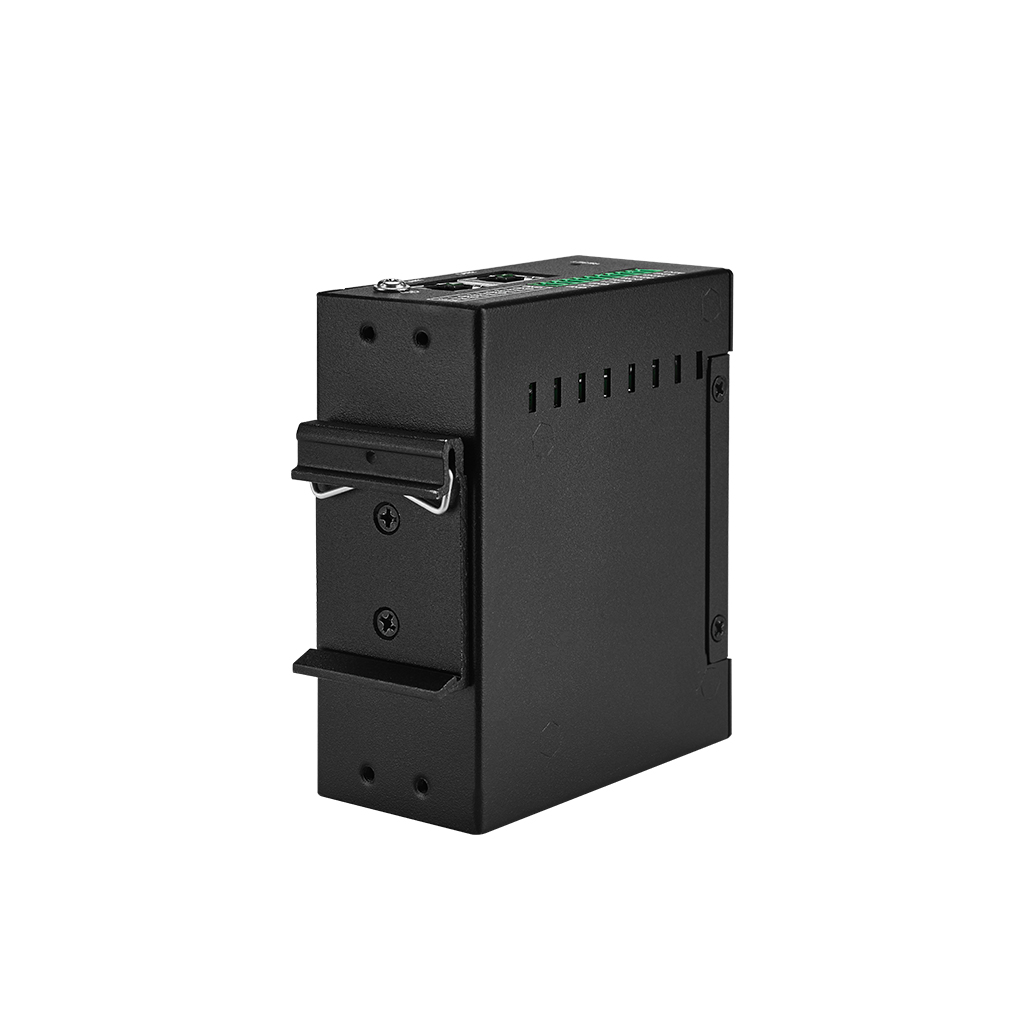

Installation	DIN rail mounted , Wall-mounted

Supply information

Manufacturer	BLIIoT — Beilai Technology Co., Ltd.
Model code	M160E
Full name	8DI + 8AI + 8DO Industrial Automation Control Module
Category	Dual-Ethernet I/O modules
Supplied in Korea by	ACUSYS Co., Ltd. · Official BLIIoT distributor in Korea
