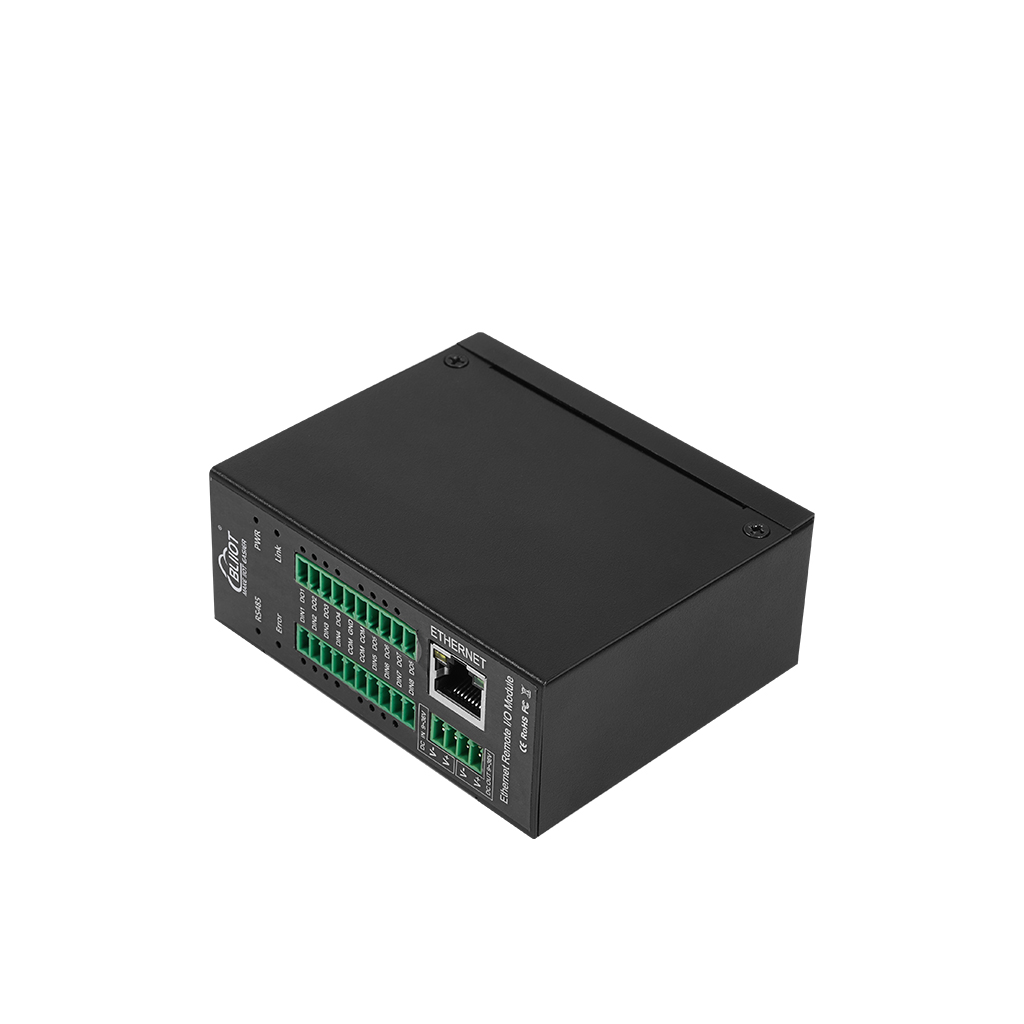

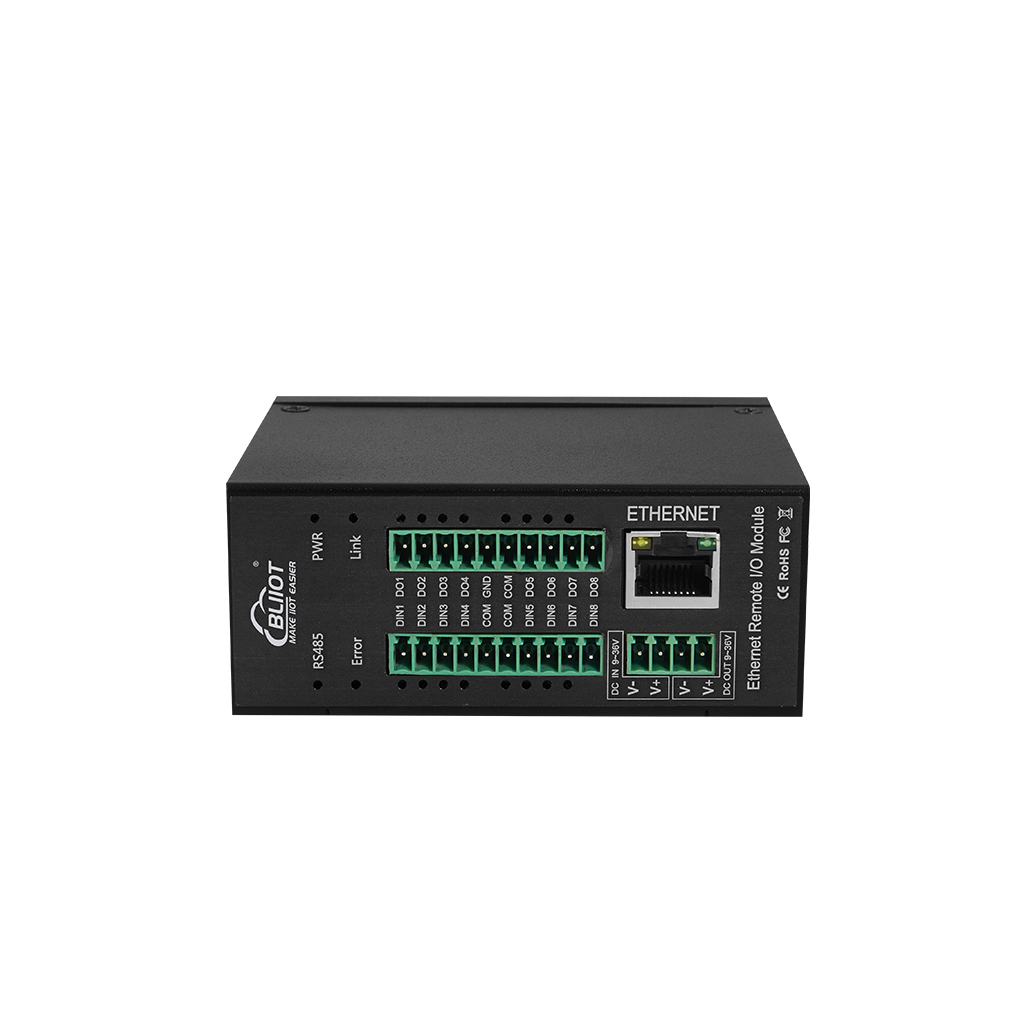

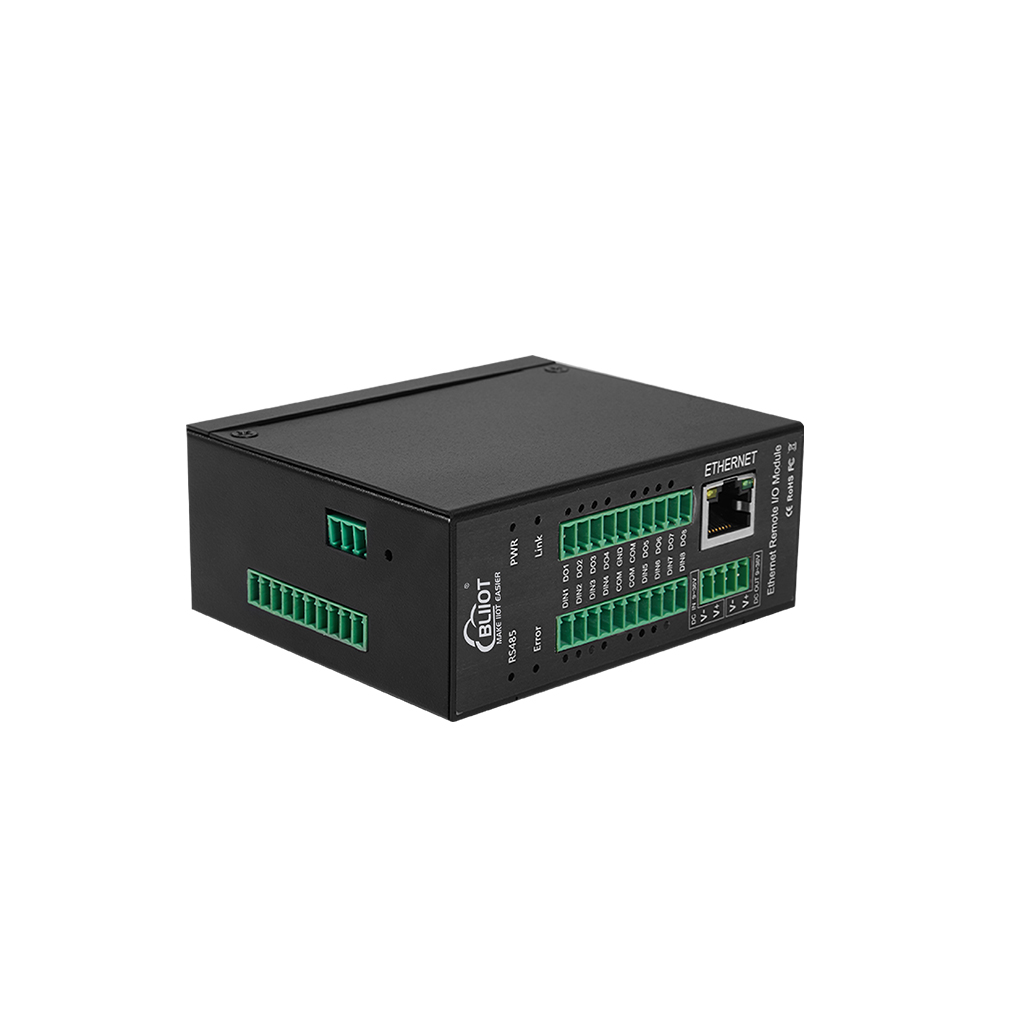

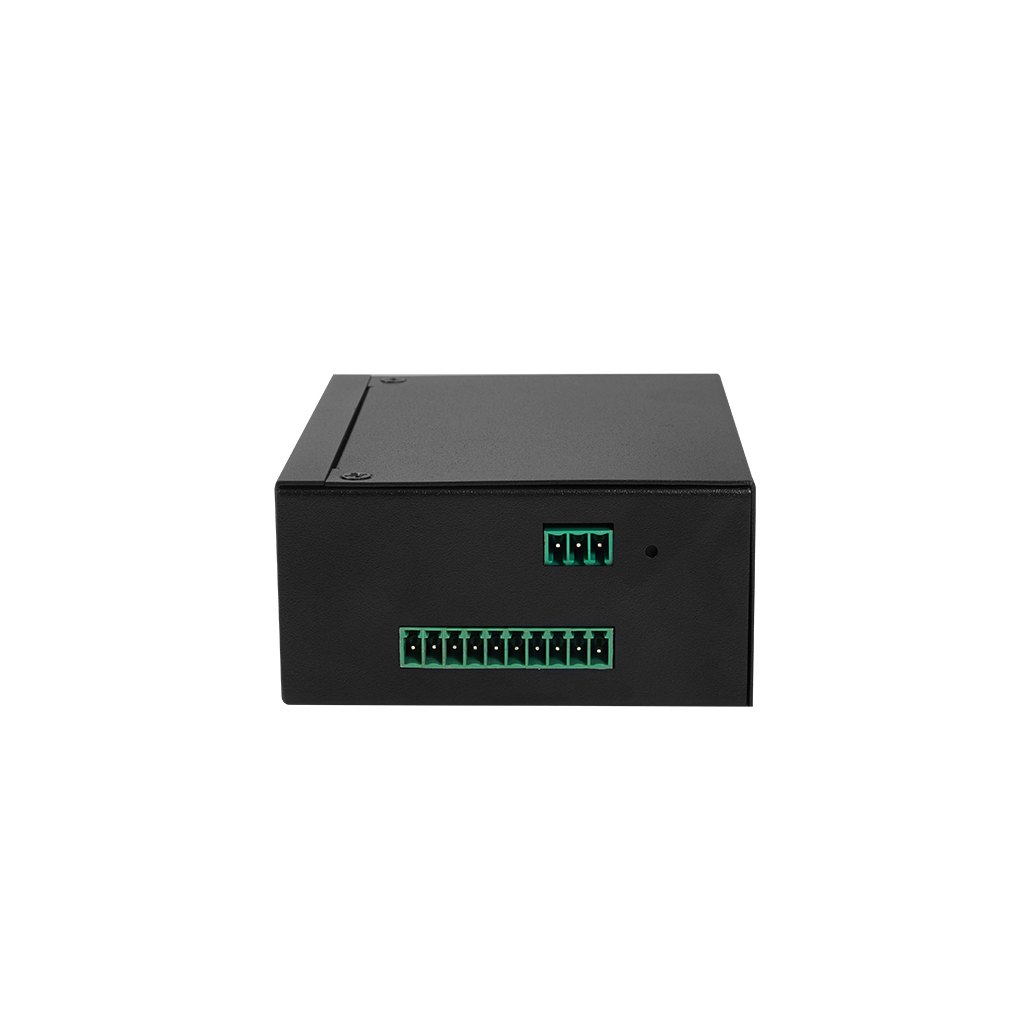

M140T
8DI + 8DO Industrial Remote I/O Module
The BLIIoT M140T Industrial Remote I/O Module is designed for industrial automation and remote control. It features a 32-bit MCU, 10/100M Ethernet port and RS485 interface, supporting Modbus TCP (master/slave), Modbus RTU over TCP and MQTT for seamless integration with SCADA, PLCs and IoT systems.
Power
| Input voltage | Models without AO: 9~36VDC Models with AO: 24~36VDC |
|---|
| Power consumption | Typical standby power consumption: ≤ 2W |
|---|
| Power Output | 1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|---|
Ethernet
| Specification | 1 x RJ45, 10M/100Mbps |
|---|
| Protocol | Modbus RTU, Modbus TCP, MQTT |
|---|
Serial port
| Quantity | 1 x RS485 |
|---|
| Baud Rate | 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|---|
| Protocol | Modbus RTU(slave), Modbus RTU(master) |
|---|
Digital input
| Quantity | 8 channels |
|---|
| Type | Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact |
|---|
Digital output
| Quantity | 8 channels |
|---|
| Type | SINK |
|---|
Software
| Protocols | IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|---|
| Protocol conversion | Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|---|
Environment
| Working | -20～70°C, 5～95%RH |
|---|
| Storage | -40～85°C, 5～95%RH |
|---|
Others
| Case | Metal |
|---|
| Dimension | 82mm×40mm×100mm |
|---|
| Protection grade | IP30 |
|---|
| Net Weight | 350g |
|---|
| Installation | DIN rail mounted , Wall-mounted |
|---|
Supply information
| Manufacturer | BLIIoT — Beilai Technology Co., Ltd. |
|---|
| Model code | M140T |
|---|
| Full name | 8DI + 8DO Industrial Remote I/O Module |
|---|
| Category | Ethernet remote I/O modules |
|---|
| Supplied in Korea by | ACUSYS Co., Ltd. · Official BLIIoT distributor in Korea |
|---|
