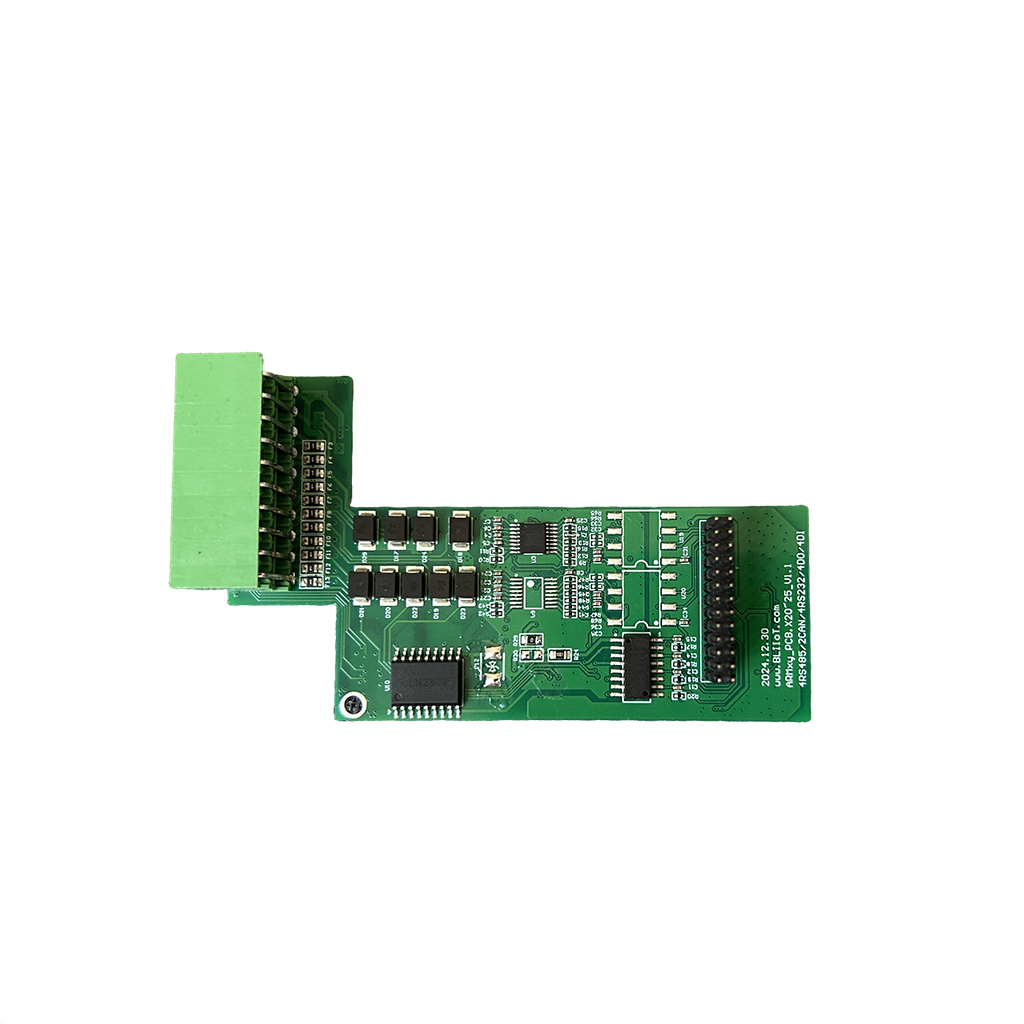

X31

7CH DI + 12CH DO Module

확장 I/O 보드 (X·Y 시리즈)

ARMxy 시리즈의 X 보드 슬롯에 장착하는 디지털 입출력 모듈입니다. 디지털 입력 7채널과 디지털 출력 12채널을 제공합니다. 전기적 절연과 함께 과전압·ESD·과전류 보호 회로를 갖췄습니다.

주요 사양
번호명칭모델신호 형식
18CH GPIO ModuleX0Digital signal
24CH RS485 ModuleX1RS485: Differential signal
34CH RS232 ModuleX2Digital signal
42CH RS485+2CH RS232 ModuleX3RS485: Differential signal RS232: Digital signal
52CH RS485+2CH CAN BUS ModuleX4RS485: Differential signal CAN: Differential signal
62CH RS232+2CH CAN BUS ModuleX5RS232: Digital signal CAN: Differential signal
72CH RS485+4CH GPIO ModuleX6RS485: Differential signaling GPIO: Digital signal
82CH RS232+4CH GPIO ModuleX7RS232: Digital signaling GPIO: Digital signaling
91CH RS485+1CH RS232+1CH CAN+2CH GPIO ModuleX8RS485: Differential signaling RS232: Digital signaling CAN: Differential signaling GPIO: Digital Input and Digital Output
102CH RS485/RS232 ModuleX10RS485: Differential signal RS232: Digital signal
112CH CAN BUS ModuleX11Differential signal
121CH RS485+1CH CAN BUS ModuleX12RS485: Differential signal RS232: Digital signal CAN: Differential signal
132DI+2DO ModuleX13DI: High-Level Trigger / Low-Level Trigger DO: NPN (Active Low Output)
144DI ModuleX14High-Level Trigger / Low-Level Trigger
154DO ModuleX15NPN (Active Low Output)
164CH GPIO ModuleX16Digital Input and Digital Output
174CH RS485/RS232 ModuleX20RS485: Differential signal RS232: Digital signal
183CH RS485+1CH CAN BUS ModuleX21RS485: Differential signal RS232: Digital signal CAN: Differential signal
192CH RS485+2CH CAN BUS ModuleX22RS485: Differential signal RS232: Digital signal CAN: Differential signal
204CH RS485/RS232 +4DI+4DO ModuleX23DI: High-Level Trigger / Low-Level Trigger DO: NPN (Active Low Output) RS485: Differential signal RS232: Digital signal
213CH RS485/RS232 +1CH CAN+4DI+4DO ModuleX24DI: High-Level Trigger / Low-Level Trigger DO: NPN (Active Low Output) RS485: Differential signal RS232: Digital signal CAN: Differential signal
222CH RS485/RS232 +2CH CAN+4DI+4DO ModuleX25DI: High-Level Trigger / Low-Level Trigger DO: NPN (Active Low Output) RS485: Differential signal RS232: Digital signal CAN: Differential signal
232CH RS485/RS232+8DI+4DO ModuleX26DI: High-Level Trigger / Low-Level Trigger DO: NPN (Active Low Output) RS485: Differential signal RS232: Digital signal
241CH RS485/RS232 +1CH CAN+8DI+4DO ModuleX27DI: High-Level Trigger / Low-Level Trigger DO: NPN (Active Low Output) RS485: Differential signal RS232: Digital signal CAN: Differential signal
252CH RS485/RS232 +12DI ModuleX28DI: High-Level Trigger / Low-Level Trigger RS485: Differential signal RS232: Digital signal
261CH RS485/RS232 +1CH CAN+12DI ModuleX29DI: High-Level Trigger / Low-Level Trigger RS485: Differential signal RS232: Digital signal CAN: Differential signal
2716CH GPIO ModuleX30Digital Input and Digital Output
287CH Digital Input+12CH Digital Output ModuleX31DI: Dry Contact DO: NPN (Active Low Output)
292CH RS485/RS232 Module+4DI+8DO ModuleX32DI: High-Level Trigger / Low-Level Trigger DO: NPN (Active Low Output) RS485: Differential signal RS232: Digital signal
공급 정보
제조사BLIIoT — Beilai Technology Co., Ltd.
모델 코드X31
정식 명칭X31 | 7CH DI + 12CH DO Module
분류확장 I/O 보드 (X·Y 시리즈)
국내 공급어큐시스 주식회사 · BLIIoT 공식 한국 총판
